Cajun Red Tintcoat

Jet Black, Perforated Leather-Appointed Seat Trim

EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE (445 hp [332 kW] @ 2800 rpm, 910 lb-ft of torque [1220 Nm] @ 1600 rpm) Includes capped fuel fill, (K40) exhaust brake and (K05) engine block heater.

TRANSMISSION, ALLISON 1000 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED with overdrive, electronic engine grade braking and tow/haul mode

REAR AXLE, 3.73 RATIO

LTZ PREFERRED EQUIPMENT GROUP includes standard equipment

TIRES, LT265/70R18E ALL-TERRAIN, BLACKWALL

PAINT, SOLID

SEATS, FRONT FULL-FEATURE LEATHER-APPOINTED BUCKET with (KA1) heated seat cushions and seat backs. Includes 10-way power driver and front passenger seat adjusters, including 2-way power lumbar control, 2-position driver memory, adjustable head restraints, (D07) floor console, storage pockets and (K4C) Wireless charging.

AUDIO SYSTEM, CHEVROLET MYLINK RADIO WITH NAVIGATION AND 8" DIAGONAL COLOR TOUCH-SCREEN, AM/FM STEREO with seek-and-scan and digital clock, includes Bluetooth streaming audio for music and select phones; USB ports; auxiliary jack; voice-activated technology for radio and phone; and Shop with the ability to browse, select and install apps to your vehicle. Apps include Pandora, iHeartRadio, The Weather Channel and more.

LTZ PLUS PACKAGE for Crew Cab and Double Cab, includes (JF4) power adjustable pedals, (UQA) Bose premium audio system, (UVD) heated leather-wrapped steering wheel and (UD5) Front and Rear Park Assist.

DRIVER ALERT PACKAGE includes (UFL) Lane Departure Warning, (UEU) Forward Collision Alert, Safety Alert Seat and (UD5) Front and Rear Park Assist

DURAMAX PLUS PACKAGE includes (L5P) Duramax 6.6L Turbo-Diesel V8 engine, (MW7) Allison 1000 6-speed automatic transmission, (GT4) 3.73 rear axle ratio, (K05) engine block heater and (K40) exhaust brake Includes (IO6) Chevrolet MyLink 8" Diagonal Color Touch audio system with Navigation and LTZ Plus Package content.

ENGINE BLOCK HEATER

ALTERNATOR, 220 AMPS

TRAILERING WIRING PROVISIONS, FOR CAMPER, FIFTH WHEEL AND GOOSENECK TRAILER includes additional 7-way wiring harness is located at the rear of the pickup box attached to the rear frame cross member

TRAILER BRAKE CONTROLLER, INTEGRATED

UNDERBODY SHIELD, FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member, protecting front underbody, oil pan, differential case and transfer case

EXHAUST BRAKE

WHEEL, 18" X 8" (45.7 CM X 20.3 CM) FULL-SIZE, STEEL SPARE.

SUNROOF, POWER

LPO, ASSIST STEPS - 6" CHROMED RECTANGULAR

LED LIGHTING, CARGO BOX WITH SWITCH ON CENTER SWITCH BANK

LAMPS, SMOKED AMBER ROOF MARKER

MIRRORS, CHROME, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING, MEMORY-EQUIPPED, UPPER GLASS, POWER-FOLDING AND MANUAL EXTENDING; Includes integrated turn signal indicators, consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power-adjustable) and addition of auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp

LPO, GOLD ILLUMINATED FRONT BOWTIE EMBLEM (includes Gold illuminated front bowtie and Gold non-illuminated rear bowtie)

LICENSE PLATE KIT, FRONT

BED LINER, SPRAY-ON Pickup box bed liner with bowtie logo. Liner is permanently bonded to the truck bed providing a water tight seal. The textured, non-skid surface is black in color and robotically applied. Spray-on liner covers entire bed interior surface below side rails, including tailgate, front box top rail, gauge hole plugs and lower tie down loops.

BOSE SOUND WITH 6 SPEAKER SYSTEM

WIRELESS CHARGING

SEATING, HEATED AND VENTED PERFORATED LEATHER-APPOINTED FRONT BUCKET

CONSOLE, FLOOR MOUNTED with cup holders, cell phone storage, power cord management, hanging file holder capability and (K4C) wireless charging

LPO, ALL-WEATHER FLOOR LINER

STEERING WHEEL, HEATED, LEATHER WRAPPED WITH AUDIO AND CRUISE CONTROLS

PEDALS, POWER-ADJUSTABLE

FRONT AND REAR PARK ASSIST, ULTRASONIC

HILL DESCENT CONTROL

FORWARD COLLISION ALERT

LANE DEPARTURE WARNING

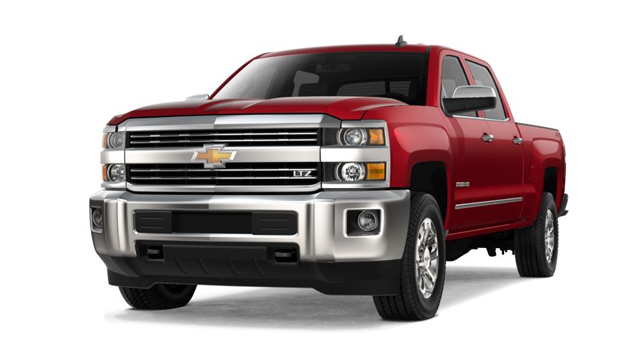

Vehicle Name - Chevrolet Silverado 2500HD

Body Style - Crew Cab Pickup

Body Code - E63

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Gross Axle Wt Rating - Front (lbs) - 6000

Gross Axle Wt Rating - Rear (lbs) - 6200

Curb Weight - Front (lbs) - - TBD -

Curb Weight - Rear (lbs) - - TBD -

Gross Vehicle Weight Rating Cap (lbs) - 10000

Fuel Economy Est-Combined (MPG) -

EPA Fuel Economy Est - City (MPG) -

EPA Fuel Economy Est - Hwy (MPG) -

Gross Combined Wt Rating (lbs) - 25300

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 13000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 1300

Fifth Wheel Hitch - Max Trailer Wt. (lbs) - 13500

Fifth Wheel Hitch - Max Tongue Wt. (lbs) - 3375

Maximum Trailering Capacity (lbs) - 13000

Engine Order Code - L5P

Engine Type - Turbocharged Diesel V8

Displacement - 6.6L/403

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 445 @ 2800

SAE Net Torque @ RPM - 910 @ 1600

Trans Order Code - MW7

Trans Type - 6

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 3.10

Second Gear Ratio (:1) - 1.81

Third Gear Ratio (:1) - 1.41

Fourth Gear Ratio (:1) - 1.00

Fifth Gear Ratio (:1) - 0.71

Sixth Gear Ratio (:1) - 0.61

Reverse Ratio (:1) - 4.49

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model - Magna MP1625/6

Transfer Case Gear Ratio (:1), High - 1.00

Transfer Case Gear Ratio (:1), Low - 2.72

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 730

Cold Cranking Amps @ 0? F (2nd) - 730

Tons/yr of CO2 Emissions @ 15K mi/year -

Maximum Alternator Capacity (amps) - 220

Maximum Alternator Watts -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler - Yes

Frame Type - Hydroformed

Suspension Type - Front - Independent

Suspension Type - Rear - Multi-Leaf

Spring Capacity - Front (lbs) - 6000

Spring Capacity - Rear (lbs) - 6200

Axle Type - Front - Independent

Axle Type - Rear - Full Floating

Axle Capacity - Front (lbs) - 6000

Axle Capacity - Rear (lbs) - 6200

Axle Ratio (:1) - Front - 3.73

Axle Ratio (:1) - Rear - 3.73

Shock Absorber Diameter - Front (mm) - 51.0

Shock Absorber Diameter - Rear (mm) - 51.0

Stabilizer Bar Diameter - Front (in) - 1.31

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - QGM

Rear Tire Order Code - QGM

Spare Tire Order Code - ZWF

Front Tire Size - LT265/70R18E

Rear Tire Size - LT265/70R18E

Spare Tire Size - LT265/70R18E

Front Tire Capacity (lbs) - 6000

Rear Tire Capacity (lbs) - 6200

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - - TBD -

Front Wheel Size (in) - 18 x 8.0

Rear Wheel Size (in) - 18 x 8.0

Spare Wheel Size (in) - 18 x 8.0

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Pwr

Steering Ratio (:1), On Center - - TBD -

Steering Ratio (:1), At Lock - - TBD -

Turning Diameter - Curb to Curb (ft) - 51.5

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13.98 x 1.57

Rear Brake Rotor Diam x Thickness (in) - 14.17 x 1.34

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 36.0

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - - TBD -

Aux Fuel Tank Location -

Front Head Room (in) - 42.80

Front Leg Room (in) - 45.27

Front Shoulder Room (in) - 64.84

Front Hip Room (in) - 60.73

Second Head Room (in) - 40.50

Second Leg Room (in) - 40.93

Second Shoulder Room (in) - 64.33

Second Hip Room (in) - 60.24

Wheelbase (in) - 153.70

Length, Overall w/o rear bumper (in) - 239.50

Width, Max w/o mirrors (in) - 80.51

Height, Overall (in) - 78.23

Overhang, Front (in) - - TBD -

Overhang, Rear w/o bumper (in) - - TBD -

Front Bumper to Back of Cab (in) - 150.10

Cab to Axle (in) - 41.26

Cab to End of Frame (in) - - TBD -

Ground to Top of Load Floor (in) - - TBD -

Ground to Top of Frame (in) - - TBD -

Frame Width, Rear (in) - - TBD -

Ground Clearance, Front (in) - 9.65

Ground Clearance, Rear (in) - 9.65

Cargo Box Length @ Floor (in) - 78.86

Cargo Box Width @ Top, Rear (in) - - TBD -

Cargo Box Width @ Floor (in) - - TBD -

Cargo Box Width @ Wheelhousings (in) - 51.02

Cargo Box (Area) Height (in) - 21.10

Tailgate Width (in) - - TBD -

Cargo Volume (ft?) - 61.0

Ext'd Cab Cargo Volume (ft?) - - TBD -

Model Group - Silverado HD

Vehicle Segment - Large Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 6.0

Engine Camshaft - OHV

Engine Block Type - iron

Engine Cylinder Count - 8

Engine Valve Count - 4

Country of Origin - United States Chevrolet Trucks
